AUTOMATIC VOLTAGE REGULATOR TAIYO_TYPE EXU-61a

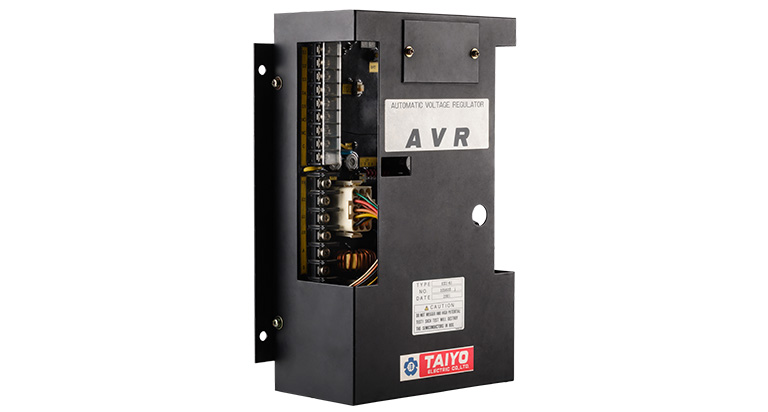

The automatic voltage regulator EXU-61a & EXU-6a is a microprocessor automatic voltage regulator which is designed for brushless generator use.

The AVR is provided with a control unit using a transistor in the output stage.

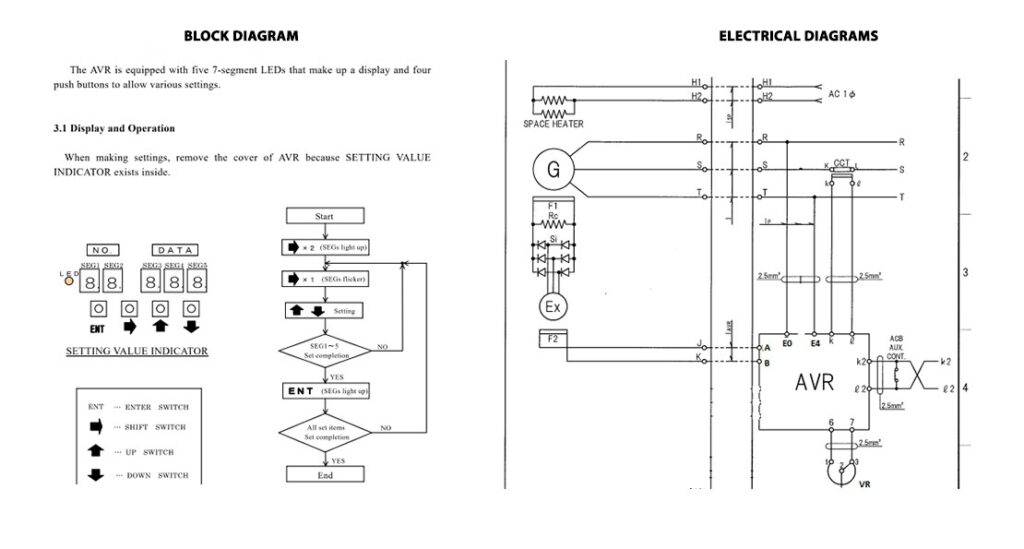

Various data settings are possible by VR (variable resistor) and setting value indicator (7 segment LEDs and push buttons switches).

The AVR has the following inputs & output terminals
Generator voltage input E0, E1, E2, E3, E4 :
Generator voltage input k , l
Variable resistor 6, 7
Parallel operation input k2 , L2
Excitation output A ,B
